Slotted Angle Shelving: Best Guide to Uses, Types & Benefits
Discover everything about slotted angle shelving — types, uses, benefits, and assembly tips. Find the best slotted angle shelving supplier in Dubai & UAE
When storage space is tight and organization matters, businesses and homeowners alike turn to one of the most reliable solutions on the market — slotted angle shelving. Whether you are managing a busy warehouse in Dubai, setting up a retail stockroom, organizing a garage workshop, or simply decluttering a home basement, slotted angle shelving delivers a practical, affordable, and highly adaptable storage system that works in almost every environment.
This type of shelving has been a staple in warehouses and commercial spaces across the UAE for decades. Its popularity comes from a simple truth — it is strong, scalable, easy to build, and does not cost a fortune. Unlike fixed shelving systems that become obsolete when your needs change, slotted angle shelving grows and adapts with you.
In this guide, you will learn what slotted angle shelving is, how it is built, the different types available, where it is used, how to choose the right system, how to assemble it, and how to maintain it for long-term performance.

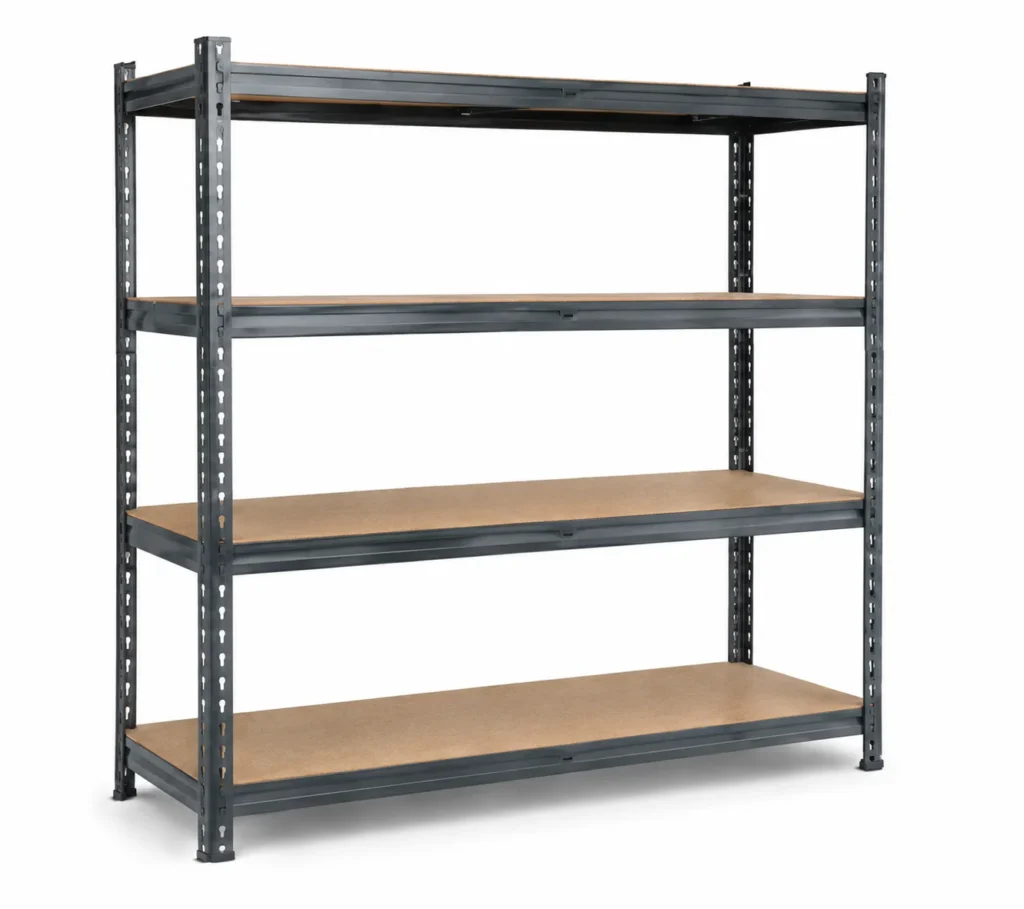

What Is Slotted Angle Shelving?
Slotted angle shelving is a modular storage system constructed from lengths of steel angle iron that have been pre-punched with evenly spaced slots or holes along their surface. These slots are what give the system its name and its flexibility. The vertical uprights and horizontal cross-members connect using standard nuts and bolts, and shelf boards — made from steel, MDF, chipboard, or wire mesh — sit across the horizontal members at whatever height suits your needs.
The system is also widely referred to as:
- Slotted angle racks
- Steel angle shelving
- Adjustable metal shelving
- Perforated angle shelving
- Angle iron shelving
- Bolt-together shelving
The concept originated in industrial storage design during the early twentieth century when manufacturers needed a cost-effective way to organize parts, tools, and inventory. The pre-punched hole pattern was a breakthrough because it meant shelf heights could be changed in minutes rather than hours.
Today, slotted angle shelving is manufactured and supplied across the UAE by dozens of companies, with Dubai being a major hub for distribution and installation. The product has evolved from a purely industrial solution into a versatile storage system used in offices, retail stores, server rooms, libraries, and homes.
3. Key Features and Benefits
Slotted angle shelving offers a range of features that make it the go-to storage solution for businesses and homeowners across Dubai and the UAE.
Adjustable Height and Configuration
The pre-punched slots along every upright allow shelf positions to be moved up or down without dismantling the entire unit. If your inventory changes, you can reconfigure the shelving in minutes using a basic spanner.
High Load-Bearing Capacity
Depending on the steel gauge and configuration, a single shelf can hold anywhere from 50 kg to over 200 kg. Heavy-duty slotted angle shelving in Dubai is commonly used for storing auto parts, industrial equipment, and bulk stock.
Easy Assembly and Disassembly
A spanner and a rubber mallet are typically all you need. No specialist skills or power tools are required. This makes it cost-effective because businesses do not need to hire professional installers.
Cost-Effectiveness
Compared to pallet racking or bespoke steel shelving, the material and installation costs are significantly lower. This makes it an ideal choice for small businesses, startups, and operations watching their budget closely.
Durability and Rust-Resistant Finishes
Most slotted angle shelving available in Dubai comes with a powder-coated finish that resists rust, scratches, and mild chemical exposure. For outdoor or high-humidity environments, galvanized steel options provide extra corrosion protection.
Compatible with Various Shelf Board Materials
- Steel sheets for heavy loads
- Wire mesh for ventilation
- MDF or chipboard for lighter general use
Customizable Sizes and Dimensions
Shelf widths, depths, and heights can be specified to fit almost any space — from a compact home storage room to a large distribution warehouse in Jebel Ali.
Types of Slotted Angle Shelving
Choosing the right type depends on what you intend to store and how much space you are working with.
Light-Duty Slotted Angle Shelving
- Load capacity: up to 50–75 kg per shelf
- Best for: offices, retail stockrooms, home environments
- Suitable for files, boxes, small parts, and household goods
Medium-Duty Slotted Angle Shelving
- Load capacity: 75–150 kg per shelf
- Most popular category among small and medium businesses in UAE
- Suitable for workshops, garages, and general warehouse use
Heavy-Duty Slotted Angle Shelving
- Load capacity: 150 kg and above per shelf
- Built for manufacturing plants, automotive workshops, and large distribution warehouses
- Uses thicker steel angles and reinforced shelf boards
Open Frame Shelving
- Accessible from all sides
- Full visibility of stored items
- Best for warehouses and workshops
Enclosed / Closed Slotted Angle Shelving
- Side and back panels for extra security and dust protection
- Ideal for documents, electronics, and small sensitive parts
Single-Sided vs. Double-Sided
- Single-sided units stand against a wall
- Double-sided units allow access from both sides, maximizing warehouse aisle efficiency
Mobile / Wheeled Slotted Angle Shelving
- Castors added to the base for easy repositioning
- Popular in retail stockrooms and workshop environments in Dubai
Common Uses and Applications
Slotted angle shelving is used across a wide range of industries and environments throughout Dubai and the UAE.
Warehouses and Distribution Centers
- Organizing stock, spare parts, and packaging materials
- Adjustable nature allows storage of items of different sizes
- Widely used in Dubai Investment Park and Jebel Ali logistics hubs
Retail Stores and Stockrooms
- Organized product storage by category, size, or frequency
- Enclosed slotted angle shelving protects retail stock from dust
- Easy to reconfigure as product lines change
Garages and Workshops
- Tools, spare parts, oils, and equipment kept organized
- Heavy-duty slotted angle racks handle rough workshop conditions
- Popular with car workshops and fabrication shops across Dubai
Home Storage and Basements
- Seasonal items, sports equipment, and cleaning supplies
- Light-duty adjustable metal shelving ideal for domestic use
- Keeps household areas tidy without taking up excessive floor space
Libraries and Archives
- Stores large volumes of books, files, and documents
- Adjustable shelf heights accommodate different book and folder sizes
- Enclosed variants protect documents from dust and damage
Factories and Manufacturing Plants
- Organizes raw materials, finished goods, and components
- Industrial slotted angle shelving handles production area demands
IT Rooms and Server Storage Areas
- Organizes cabling, networking equipment, and spare hardware
- Open-frame design allows airflow around sensitive equipment
How to Choose the Right Slotted Angle Shelving
Follow these key points when selecting slotted angle shelving in Dubai or across the UAE.
01
Libraries and Archives
- Estimate the maximum weight per shelf
- Choose light, medium, or heavy-duty based on what you store
- Never underestimate load requirements — safety depends on it
02
Measure Your Available Space
- Measure floor area and ceiling height accurately
- Account for doorway widths for bringing units in
- Check for obstructions like pipes or columns
- Most suppliers in Dubai offer custom-sized slotted angle shelving
03
Choose the Right Material Finish
- Powder-coated steel shelving: standard choice for indoor environments
- Galvanized steel: best for moisture-prone, chemical, or outdoor conditions
04
Select the Right Shelf Board Type
- Wire mesh: ideal for ventilation and food storage
- Solid steel: best for heavy loads
- MDF / chipboard: cost-effective for lighter indoor use
05
Consider Future Scalability
- Slotted angle shelving allows additional bays to be added later
- Buy from a consistent supplier in Dubai so materials match as you expand
06
Budget Considerations
- Affordable shelving options are widely available in Dubai
- Focus on value over price — cheap steel angles can bend under load
- Look for suppliers who provide load ratings and product specifications
Installation Guide: How to Assemble Slotted Angle Shelving
Assembling slotted angle shelving is straightforward. Here is a step-by-step guide anyone can follow.
Step 01
Lay Out All Parts and Hardware
- Sort vertical uprights, horizontal cross-members, shelf boards, nuts, and bolts
- Check all components are present and undamaged before starting
Step 02
Build the First Upright Frame
- Connect two vertical uprights with horizontal cross-members
- Insert bolts through slots at desired shelf positions
- Thread nuts on finger-tight only — do not fully tighten yet

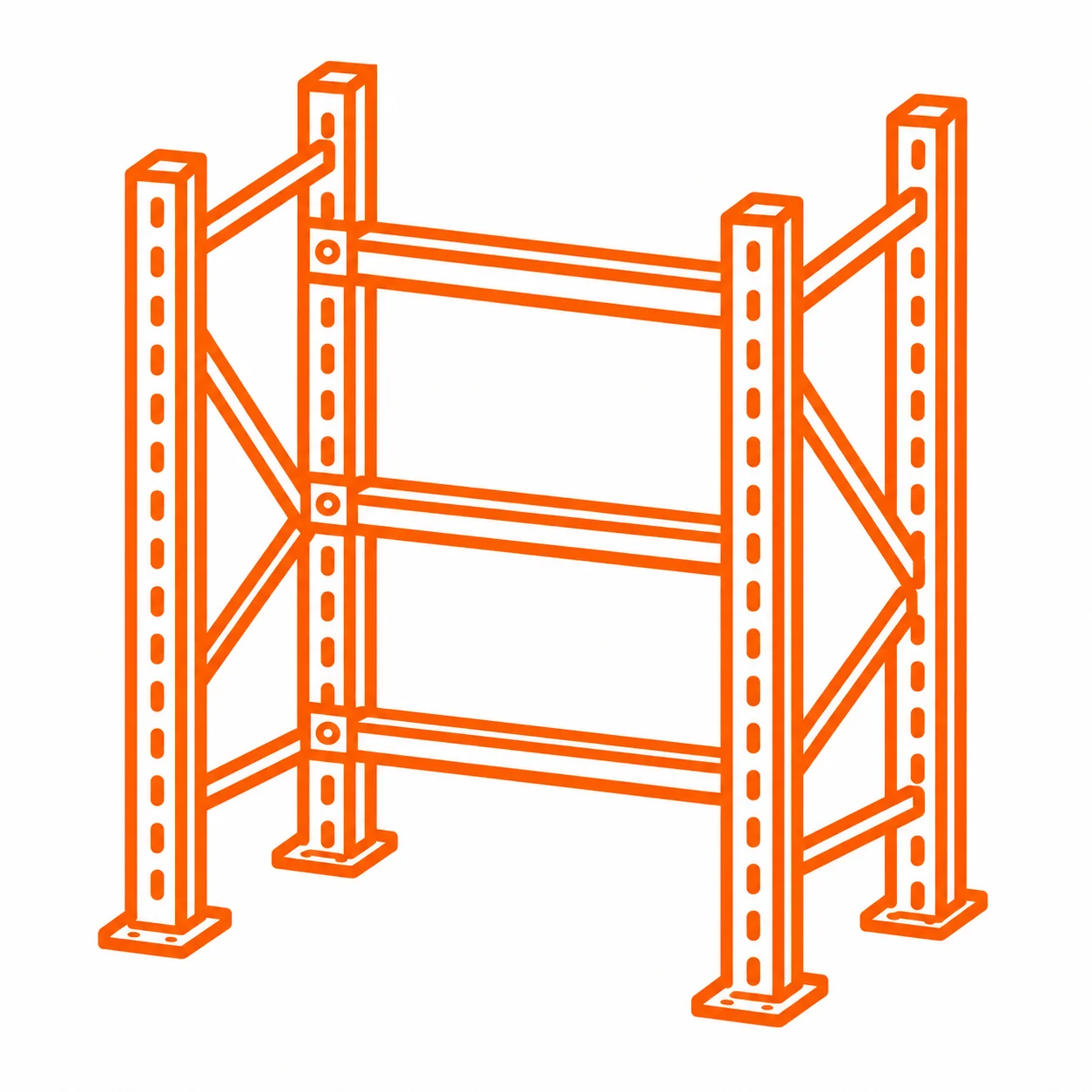

Step 03
Build the Second Frame and Connect
- Repeat the process for the second upright frame
- Connect both frames with front-to-back horizontal members
- Keep all connections finger-tight for adjustment flexibility

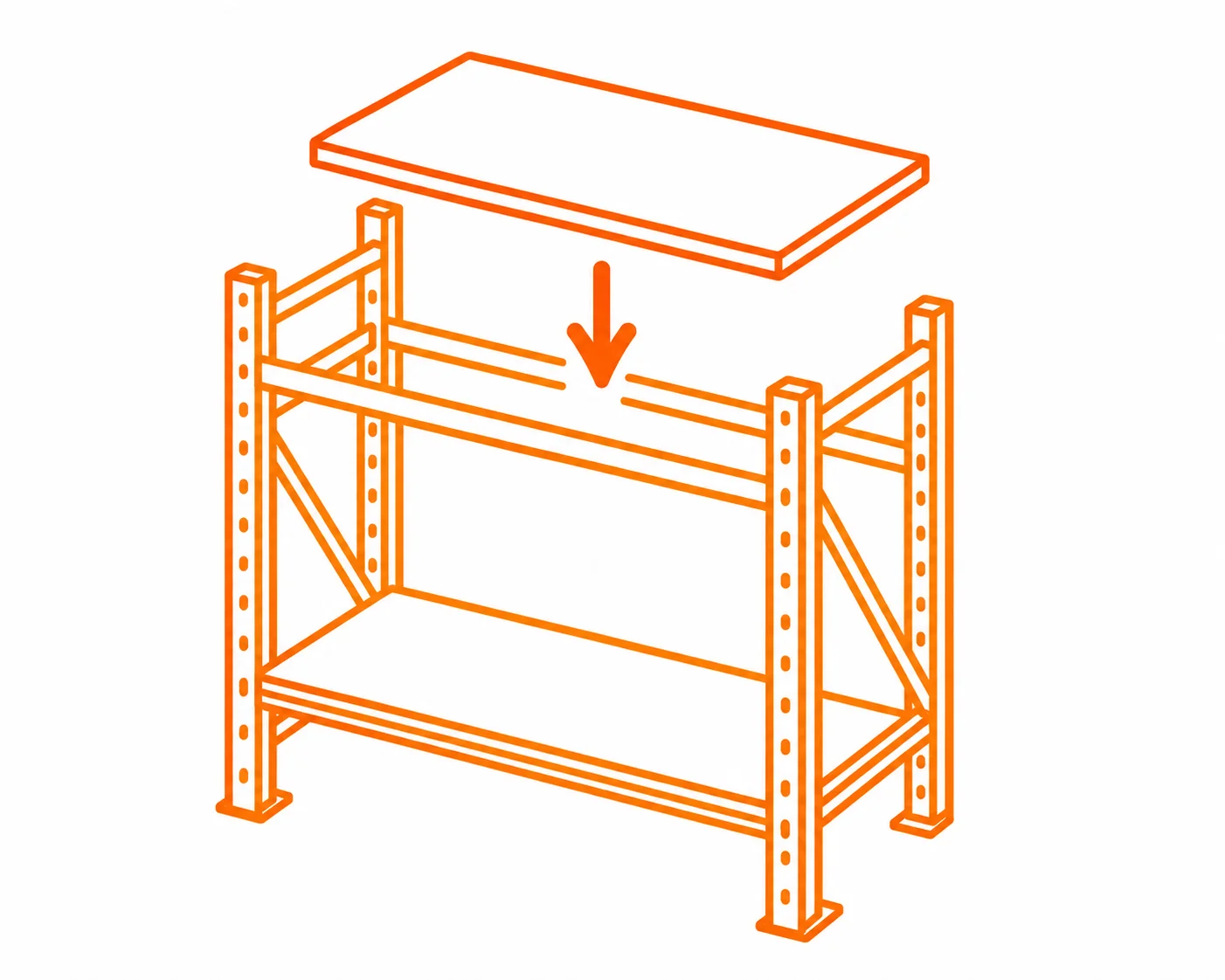

Step 04
Place Shelf Boards
- Lay shelf boards onto horizontal members at each level
- Ensure boards are flat and evenly distributed across the frame
- Clip or bolt boards into place depending on system design
Step 05
Level and Fully Tighten
- Use a spirit level to check the unit is straight front-to-back and side-to-side
- Adjust foot levelers or use shims on uneven floors
- Fully tighten all nuts and bolts with a spanner once level
Step 06
Check Stability Before Loading
- Apply gentle pressure from different angles to test rigidity
- Tighten any connections that feel loose
- Load from the bottom shelf upward to keep the center of gravity low
Safety Tip: Always respect the manufacturer’s stated weight limit per shelf and per unit. Overloading slotted angle shelving is the most common cause of structural failure and can result in serious injury or property damage.
Slotted Angle Shelving vs. Other Shelving Systems
| Shelving Type | Cost | Load Capacity | Ease of Assembly | Flexibility |
|---|---|---|---|---|
| Slotted Angle Shelving | Low | Medium – High | Very Easy | Very High |
| Pallet Racking | High | Very High | Requires Installer | Low |
| Boltless Rivet Shelving | Medium | Medium | Easy | Medium |
| Wire Shelving | Medium – High | Low – Medium | Easy | Medium |
| Modular Plastic Shelving | Low | Low | Very Easy | Low |
Slotted Angle Shelving wins on:
- Overall cost — significantly cheaper than pallet racking
- Flexibility — shelf heights adjustable at any time
- Ease of assembly — no tools or specialist knowledge needed
- Wide application — works in warehouses, offices, homes, and retail
Other systems may be preferred when:
- Very heavy pallet loads need forklift access — use pallet racking
- Aesthetic presentation matters — wire or plastic shelving looks cleaner in retail
- Sterile or food-safe environments — wire shelving is easier to sanitize
Slotted angle shelving is a modular storage system constructed from lengths of steel angle iron that have been pre-punched with evenly spaced slots or holes along their surface. These slots are what give the system its name and its flexibility. The vertical uprights and horizontal cross-members connect using standard nuts and bolts, and shelf boards — made from steel, MDF, chipboard, or wire mesh — sit across the horizontal members at whatever height suits your needs.
The system is also widely referred to as:
- Slotted angle racks
- Steel angle shelving
- Adjustable metal shelving
- Perforated angle shelving
- Angle iron shelving
- Bolt-together shelving
The concept originated in industrial storage design during the early twentieth century when manufacturers needed a cost-effective way to organize parts, tools, and inventory. The pre-punched hole pattern was a breakthrough because it meant shelf heights could be changed in minutes rather than hours.
Applications and Use Cases
One of the greatest strengths of a Flash Mezzanine Floor is its versatility. It performs equally well across a diverse range of industries and environments.
Warehouses and Logistics
The warehouse mezzanine floor is the most common application. In Dubai’s industrial zones — from Jebel Ali to Dubai Industrial City — warehouses use mezzanine floors to create additional storage levels, picking areas, or packing stations above the ground floor. This dramatically increases storage capacity without requiring a larger facility. A storage mezzanine platform in Dubai can effectively double a warehouse’s usable cubic space.
Retail and Commercial Spaces
A mezzanine floor for retail in Dubai is an excellent way to expand display and sales areas in showrooms and shops. Rather than expanding the retail unit, businesses add an upper level for product display, fitting rooms, or staff areas. The Flash Mezzanine Floor can be designed with high-quality finishes that complement the retail environment perfectly.
Offices and Co-Working Spaces
A mezzanine floor for office use in Dubai is increasingly popular among growing businesses that need additional workspace without moving to larger premises. The upper level can be enclosed, insulated, and fitted out as a fully functional office, complete with air conditioning, lighting, and partitioning.
Offices and Co-Working Spaces
A mezzanine floor for office use in Dubai is increasingly popular among growing businesses that need additional workspace without moving to larger premises. The upper level can be enclosed, insulated, and fitted out as a fully functional office, complete with air conditioning, lighting, and partitioning.
Manufacturing Units
In manufacturing environments, Flash Mezzanine Floors are used to create elevated production areas, equipment platforms, control rooms, or quality inspection zones. The structural steel mezzanine floor in these applications is typically designed for heavy loads and high durability.
Mixed-Use Industrial Facilities
Many businesses in the UAE use Flash Mezzanine Floors to separate operational functions within a single space — for example, warehousing on the ground level and offices or administration on the mezzanine level. This dual-use configuration makes excellent use of available space and improves operational efficiency.
Frequently Asked Questions (FAQs)
A Flash Mezzanine Floor is a custom-engineered intermediate floor level built between the existing floor and ceiling of a building. It is designed and manufactured by Flash to maximize usable space in warehouses, offices, retail stores, and industrial facilities across Dubai and the UAE.
Most standard Flash Mezzanine Floor installations in Dubai are completed within one to two weeks. Larger or more complex projects may take longer. Because the steel components are pre-fabricated off-site, on-site installation is fast and minimally disruptive to your operations.
Absolutely. Every Flash Mezzanine Floor is designed from scratch to suit the specific dimensions, load requirements, and operational needs of the client. From the structural steel configuration to the flooring material, staircase position, and finishes, every detail can be tailored.
Load capacity depends on the design specification. Standard configurations support between 250 kg/m² and 1,000 kg/m². Flash engineers calculate the exact requirement for each project based on the intended use, ensuring the structure is both safe and cost-efficient.
In many cases, a mezzanine floor permit from Dubai Municipality is required, particularly for larger or permanent installations. Flash can guide you through the permitting process and prepare the necessary documentation to ensure full compliance with local regulations.
By creating an additional floor level within the same building footprint, a Flash Mezzanine Floor dramatically increases the usable storage and operational space available. This allows warehouses to handle greater inventory volumes, separate operational functions, and improve workflow without the cost and disruption of relocating.
A well-designed and properly maintained Flash Mezzanine Floor can last for several decades. The structural steel components are highly durable, and the system can be modified, extended, or reconfigured over time to adapt to changing business needs.
Yes. Modular mezzanine floor systems in particular are designed for disassembly and relocation. This makes them an excellent long-term investment for businesses that may move or expand in the future.
Conclusion
Space is one of the most valuable resources any business in Dubai manages. A Flash Mezzanine Floor is one of the smartest, most cost-effective ways to expand that space without the enormous expense and disruption of moving to a new facility or undertaking major construction work.
From warehouses in Jebel Ali and Al Quoz to retail showrooms in Dubai and manufacturing units in Sharjah, Flash Mezzanine Floors have transformed the way businesses think about their physical space. The combination of custom engineering, high-quality materials, rapid installation, and full regulatory compliance makes Flash the preferred choice for businesses across the UAE that demand real solutions rather than compromises.
Whether you are evaluating a mezzanine floor for the first time or looking to upgrade an existing system, Flash brings the expertise, experience, and commitment to quality that the job demands. The process starts with a simple conversation — a site visit, a discussion about your needs, and a clear, detailed quotation with no hidden surprises.
If you are ready to make the most of your space, Flash Mezzanine Floor is ready to make it happen. Reach out today, request your free site assessment, and take the first step toward a smarter, more efficient facility.
Because when space is money, the right floor makes all the difference.
